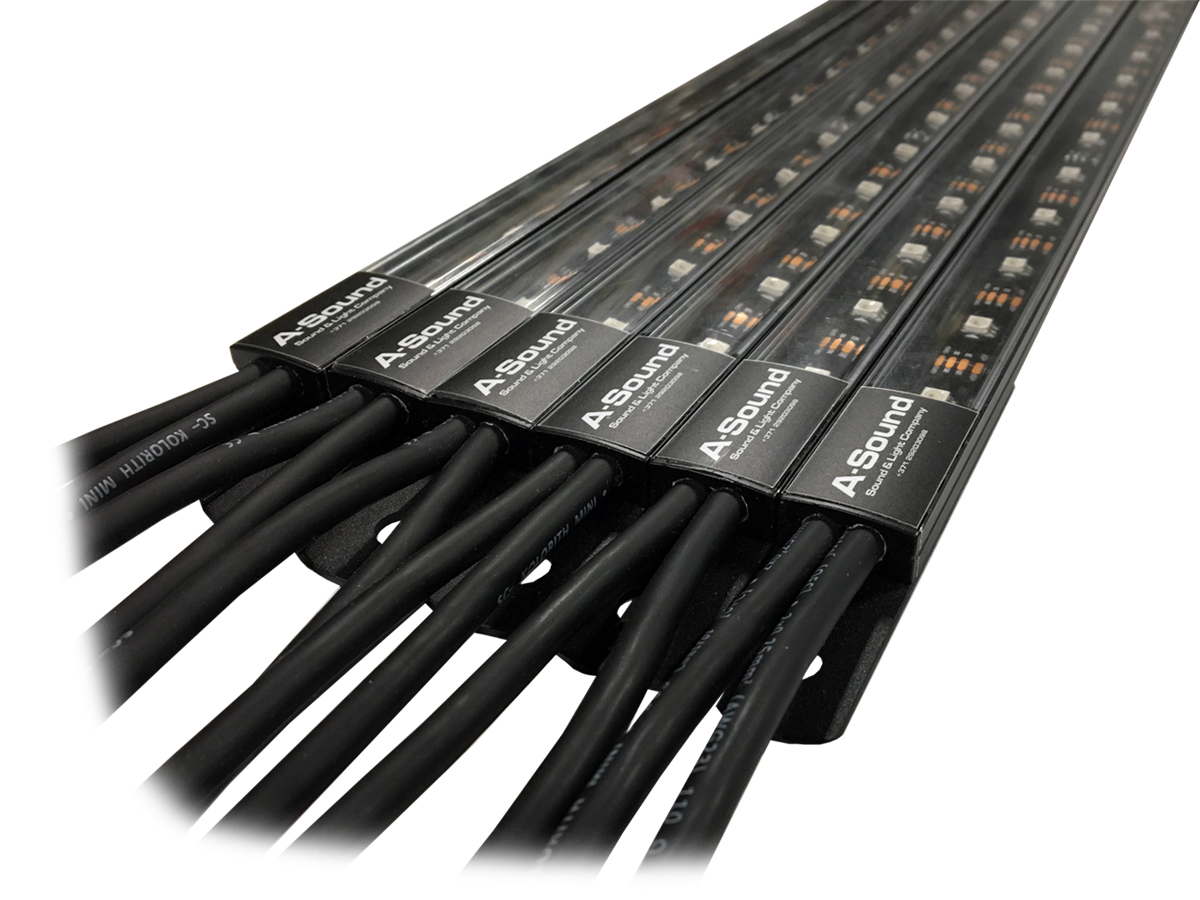

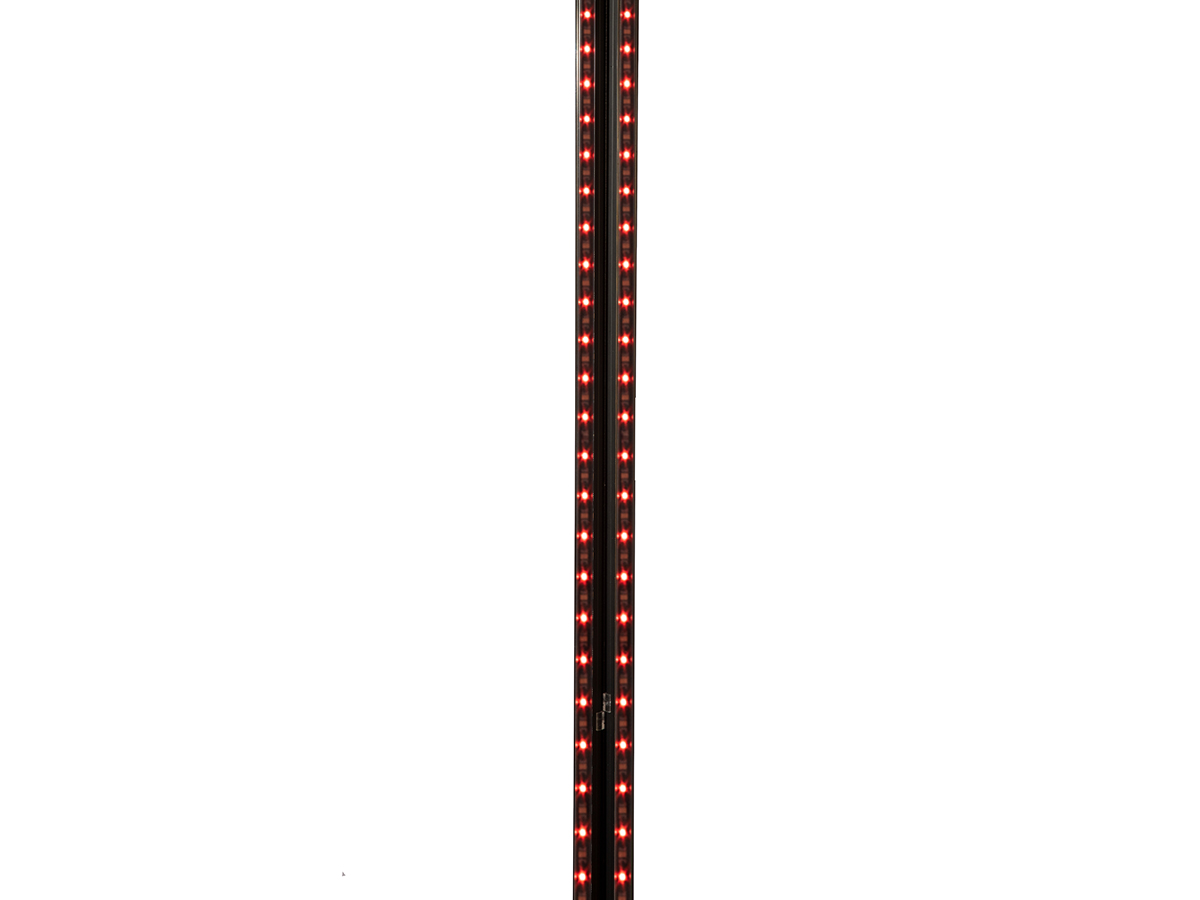

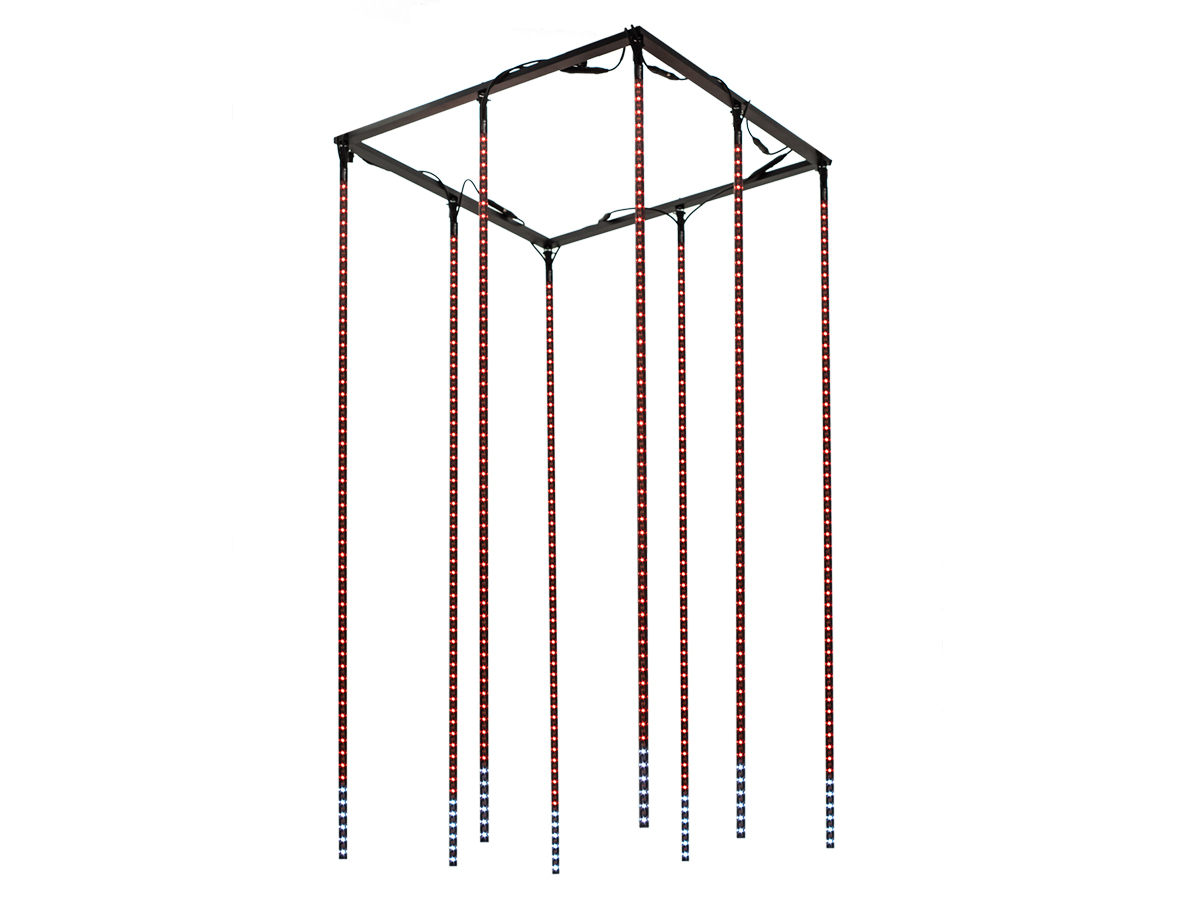

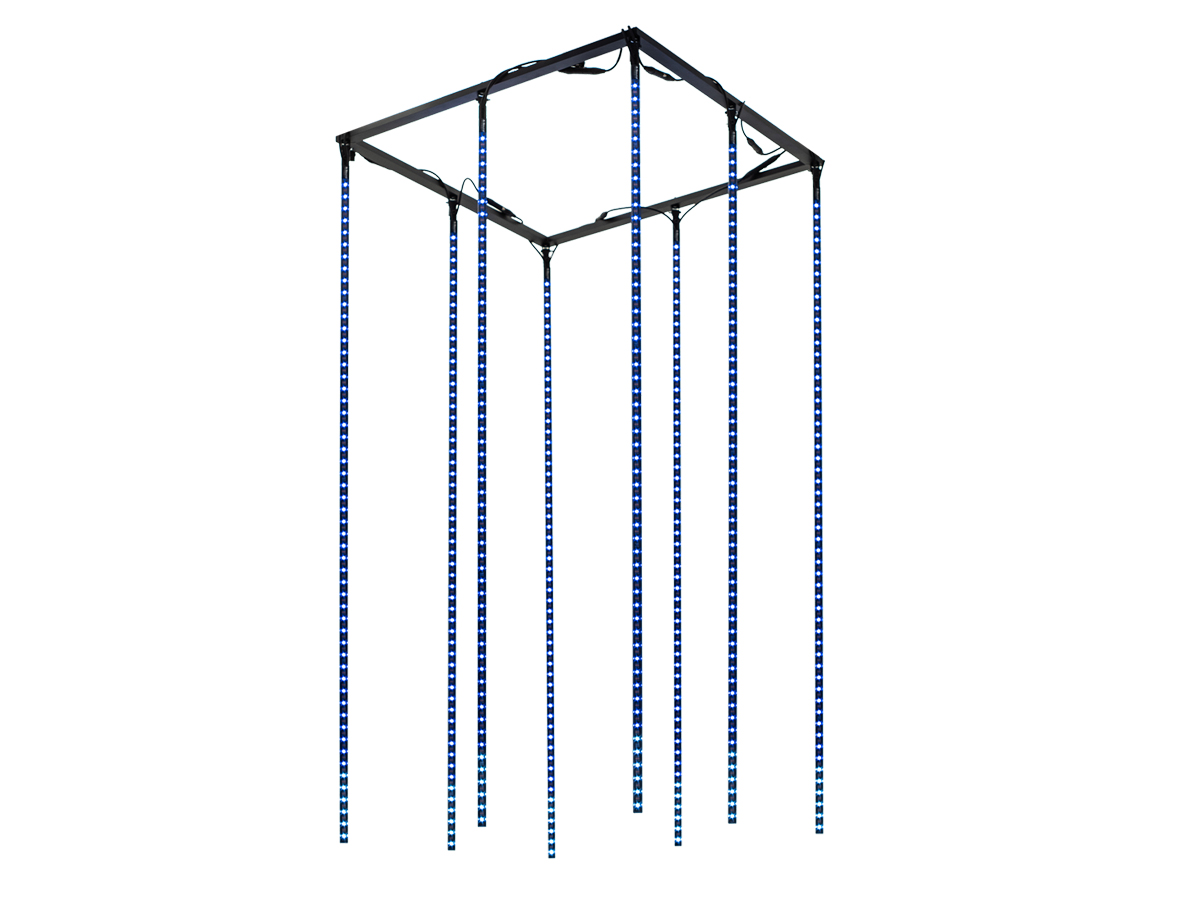

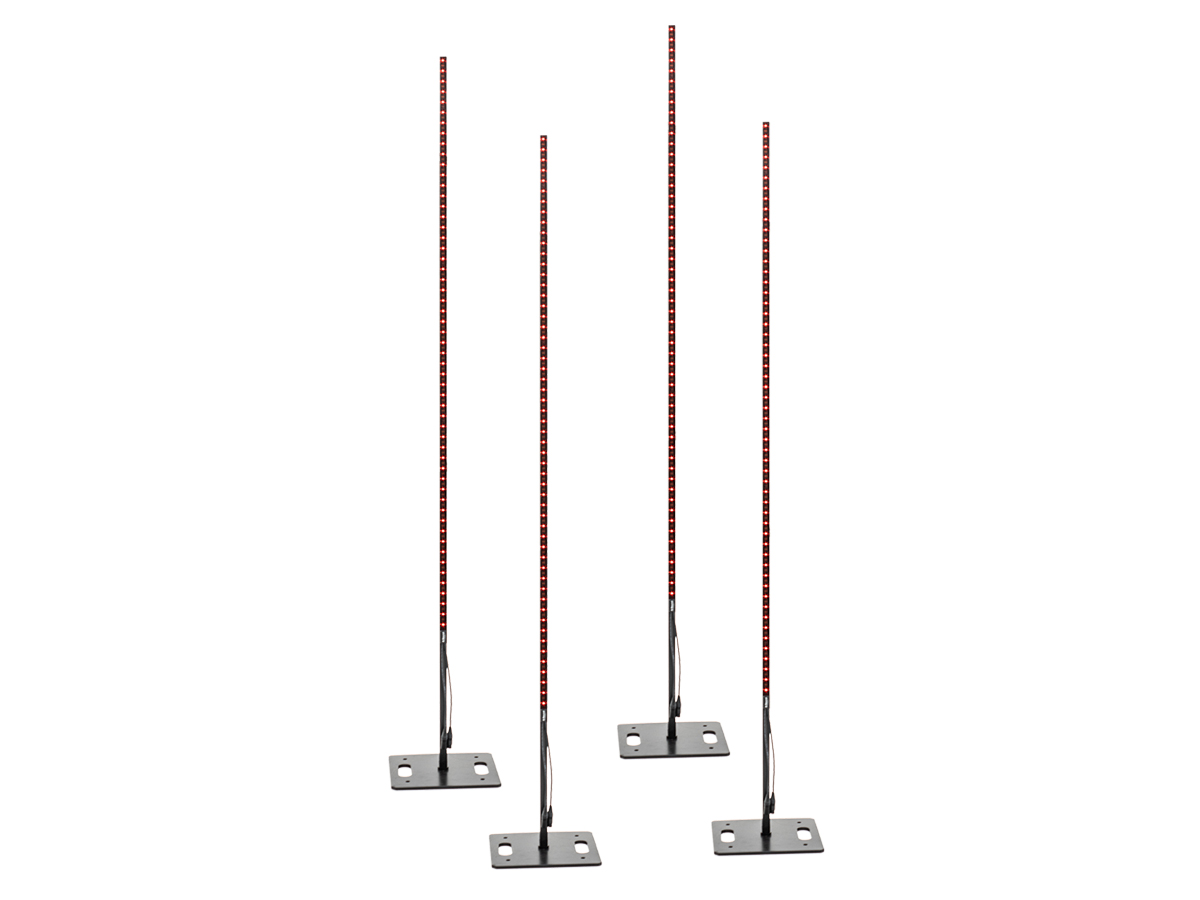

The A3 is a slim, 1.9-metre programmable LED fixture with 55 pixels and a wide 180° beam angle. Designed for creative lighting setups, it can be used to create illuminated lines, geometric arrangements and decorative backgrounds for stages, events and video productions.
SPI (TTL) digital signal control allows programmed pixel effects, while built-in power and data line protection supports reliable operation. Neutrik 4-pole XLR connectors provide connectivity for integration into a compatible lighting system.
Light Source / Power System
- Number of pixels: 55
- Beam angle: 180°
- Power input: DC 5 V, 1.65 A
- Built-in power and data line protection
Control System
- Control signal: SPI (TTL) digital input
- Connections: Neutrik 4-pole XLR connectors
Physical Specifications
- Model: A3
- Dimensions: 1900 × 23 × 10 mm (L × W × H)
- Operating temperature: −20°C to +55°C
Applications

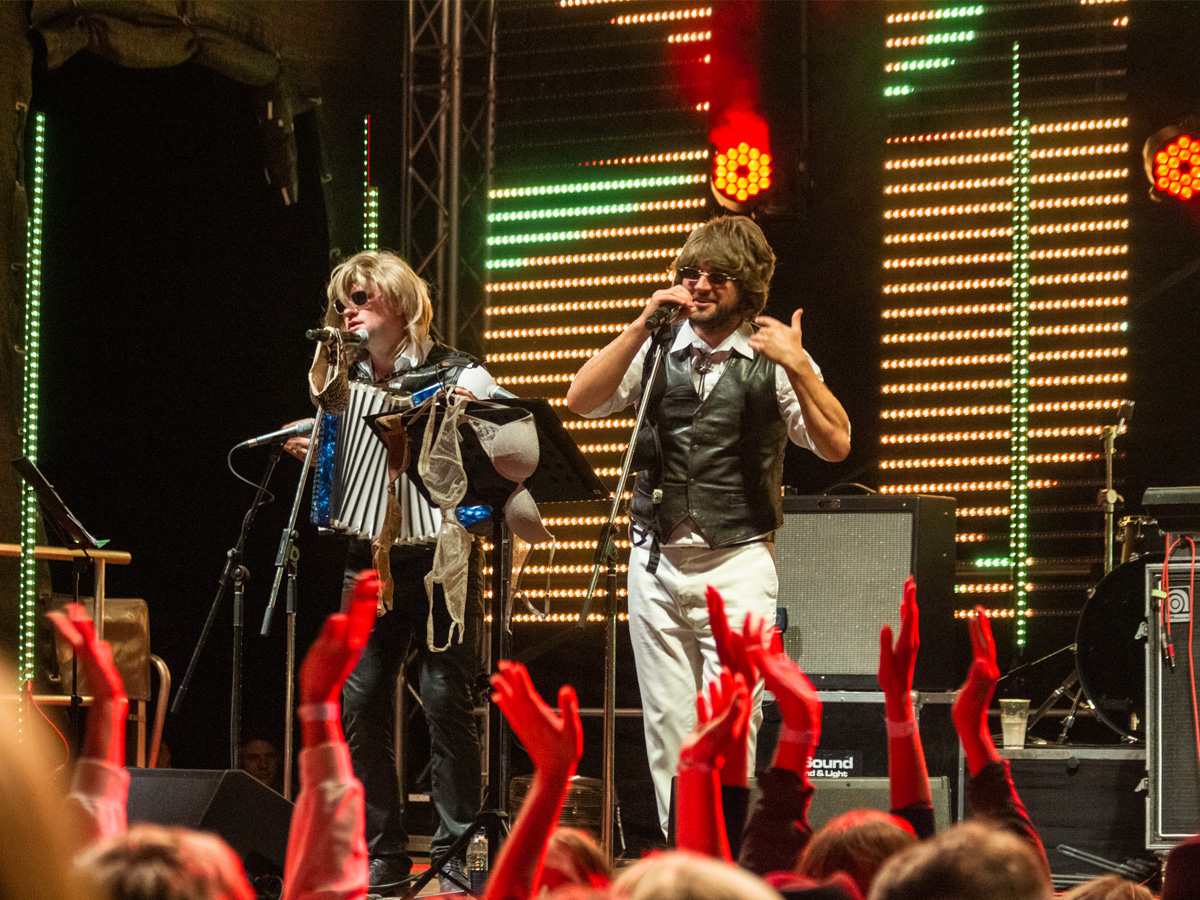

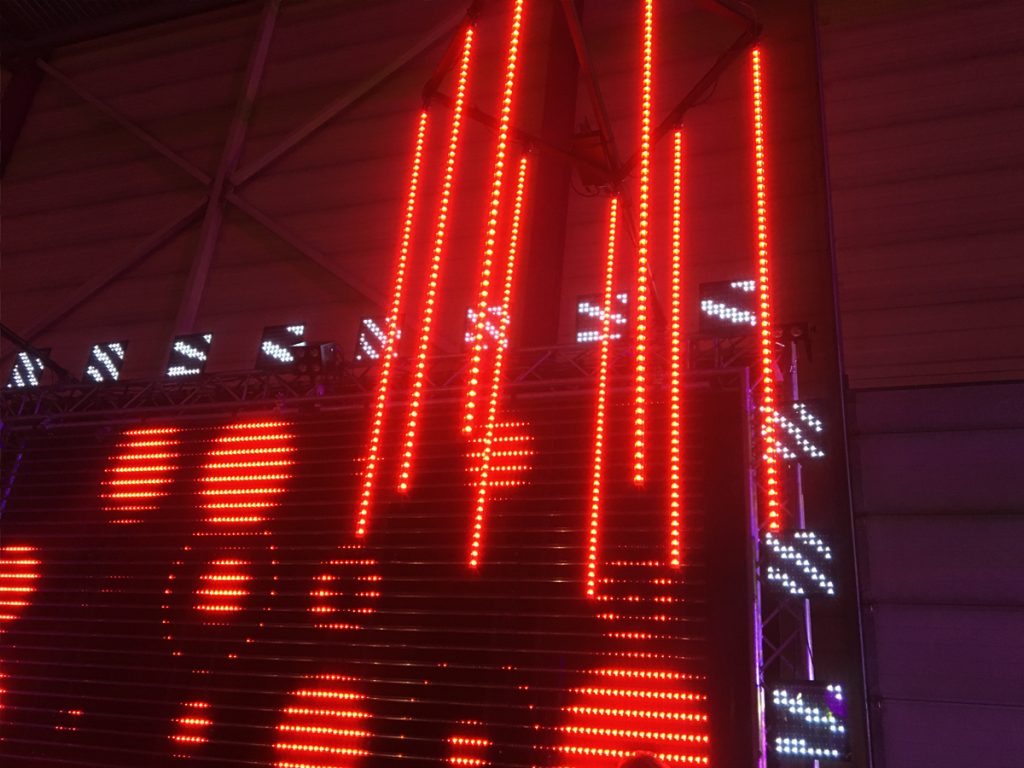

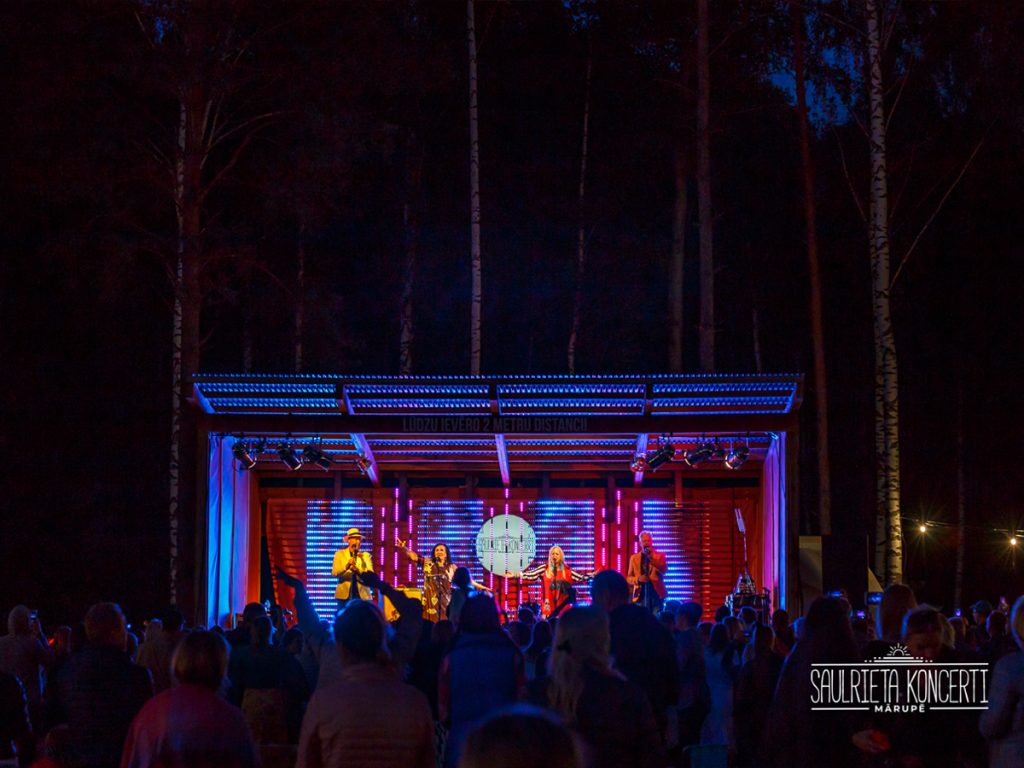

- Stage and event lighting design
- Decorative lighting for DJ booths and performance areas
- Music video and studio backgrounds
- Creative pixel lighting installations
