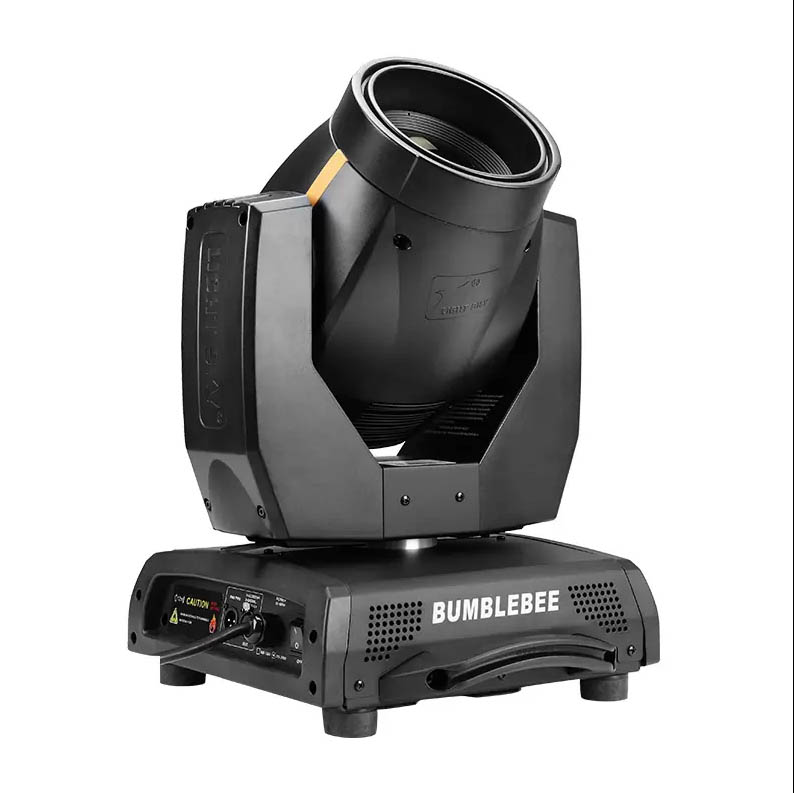

- The first domestic new low-power, high-brightness, lightweight and sensitive Hornet BUMBLEBEE appeared on the CCTV Spring Festival Gala stage, and was widely used in many famous music festivals and concerts around the world.
Light Source / Power System
Voltage : AC100V-240V 50/60Hz (AC100-120V 50/60Hz selective )
Ballast : E-ballast
Lamp : OSRAM SIRIUS HRI 230W
Color temperature : 8500K
Average Lifespan : 2000H
Color / GOBO / Effects
Color : 14 color + blank color wheel
Gobo : 17 fixed gobo + blank gobo
Prism : rotation 8-face prism, Bilateral rotation . Beam effect could stretch and close
Lens : high precision optical lens
Wash effect : adjustable Wash effects angle
Beam : 7-class beam adjustment
Beam angle : parallel beam angel 0-3.8°
Strobe : Double lens strobe (0.5-9 times/ second)
Focus : linear adjustment
Dimmer : 0-100% linear adjustment
Control System
Pan/Tilt : X axis 540° Y axis 250°automatically accurate positioning
Motor : 13pcs mute sound motor, 2pcs three phase motor, 16bitdriver
Control mode : Standard DMX512, Automatic and Master/ slave mode
Channel : 16 CHS
Other functions
Features : Remote control lamp’s switch function, display lightand lamp’s using time,Automatically adjust cooling-fan’sspeed,50% energy saving when strobe lens shu
Appearance Parameters
Structure : heat-proof plastic + module pressing alloy materials
IP Rate : IP20
Single carton Size(L x W x H):450x430x530（mm）
N.W: 17.5KG G.W: 21.3KG
2 Pcs to a Flycase(L x W x H): 755x660x680（mm）
N.W: 35KG G.W: 75KG
